The ONLY 3 Operating System Laser Shaft Alignment System in the world.

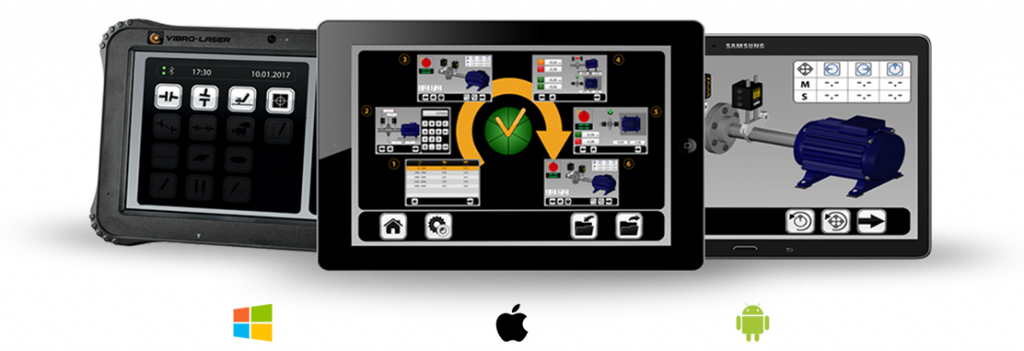

VLSAT is available on Microsoft Windows®, Android® and iOS® for iPad®.

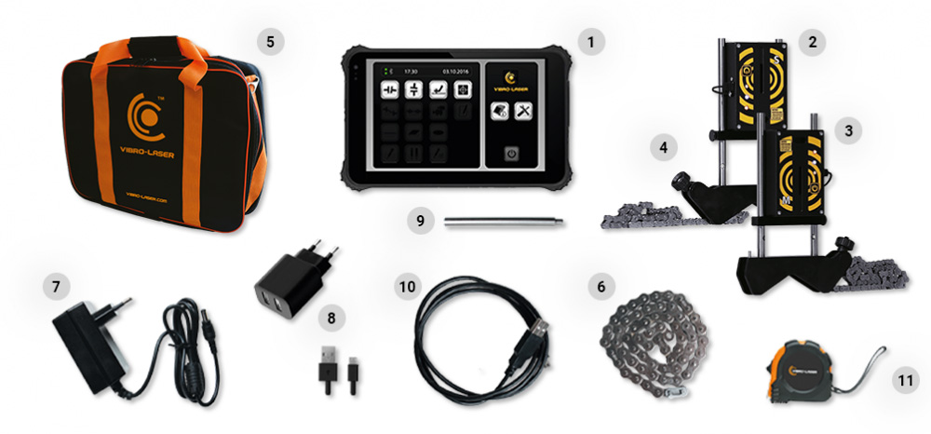

We are pleased to present the newest innovation in wireless portable laser shaft alignment technology, the VLSAT. VLSAT is available for Microsoft Windows®, Android® tablets and iOS® for iPad®.
You have a choice with VIBRO-LASER. Select your display tablet option from those we offer, or bring your own device that meets or exceeds our minimum requirements. VLSAT is ergonomically designed for the most rugged environments. This product others an absolutely innovative, step-by-step, responsive interface with 3D-animations and wide touch screen which simplifies the alignment process and reduces the time it takes to complete each alignment.
The unbeatable functionality and the undeniable performance capabilities of VLSAT systems allow you to complete precise alignments for your rotating assets every time. Rugged, Repeatable, and Relentlessly Reliable your VIBRO-LASER VLSAT system will prove to be an invaluable asset in your reliability toolkit.
- Degree of protection IP65
- Operating time 20 Hours
- Operating temperature: 14° F to 140° F (-10° C to +60° C)
- Detector type Digital CCD detector 30mm
- Measurement distance Up to 10m
Download Brochure (PDF)»
Download Brochure (PDF)»
This provides you with exact and stable measurement results and enables the system to be more interference-immune from the external factors (stray light, vibration, thermal growth etc.).
Thanks to the compact and durable aluminum case of the sensor units, you can work in the most confined and harsh environments.
» Features
Horizontal Machine Alignment
Horizontal Shafts alignment
Vertical Machine Alignment
Vertical shafts alignment is carried out by moving the machine flange/coupling until the axes are coaxial enough to stay in the assigned limits. Note: Coupled and Uncoupled Shafts.
Clock Method
This alignment method requires collecting a measurement points at any 3 of the 4 pre-defined clock positions. (3-6-9-12 o’clock).
Point Method
This alignment method allows you to begin collecting measurement points at any angle of shaft rotation and automatically collects a measurement anytime you stop rotation. Minimum of 40 degrees of rotation is required.
Soft Foot
Before any alignment soft foot should be addressed. This module enables quick, easy, and accurate determination of soft foot conditions.
Machine Train
This alignment method is for aligning multiple components across several couplings. Coming soon
Cut Angle
This alignment method is best used when 180 degrees of shaft rotation is not possible. The minimum required shaft rotation is 40 degrees. The more rotation, the better and more precise the alignment.
Thermal Growth Correction
For hot alignment, easily and accurately compensate for thermal growth using the VLSAT thermal growth correction module.
Zone Expansion
Unique technology that reduces the efffects of high vibration and competing light sources on precision alignment.
Sensor Unit Readings
The display shows data received directly from the sensor units (position of the laser beam on the sensor and inclinometer).
Multiple Sets of Feet
Allows the user to align machines with more than two sets of feet. Coming soon
Smart Measurement Value Filter
statistically analyzes measurement values and normalizes data collected utilizing a 95% confidence interval to insure the data points used to calculate alignment corrections are representative of the entire dataset. Best used in high vibration areas (coming soon).
Choose your system of measurement.
Touch the Icon “Sensor units search”. After initial use the sensor units the software will automatically connect to the applicable heads.
SwitchIT™ FUNCTION
The SwitchIT™ function allows the user to adjust the position of the motor on screen to correspond with the position of the machine in front of them, making it easier to understand adjustment directions. Coming soon
Continue Alignment
Start a new alignment, redo a previously completed alignment, or save at any step in the alignment process and go back to finish anytime.
SAVING DATA
Saves your alignment job and all respective measurements, photos, and details to the database for easy access later.
SEND THE REPORTS
When configured allows the user to easily send reports via their email client / service.
REPORT CREATION
Generates a PDF Report.
SAVE TO USB
Allows the user to export alignment job data to USB for use with other VIBRO-LASER systems.
ADD PHOTO
Allows the user to take a photo with their devices internal camera of the machine being aligned for reporting purposes.
ADD NOTES
Allows the user to manually enter notes related to the alignment job or about the machine being aligned. This tool is great for general observations.
.

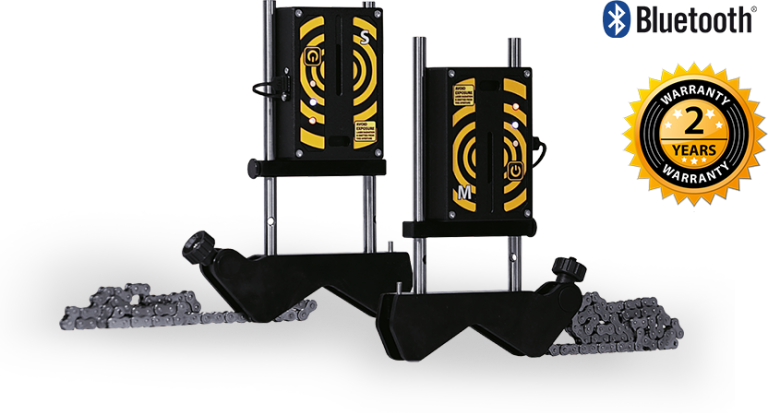

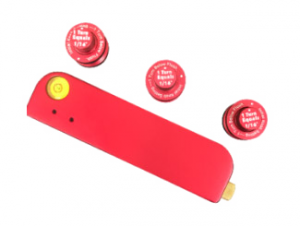

The VLPAT™ & VLPAT™ II Pulley Alignment Tools
The VLPAT™ (Pulley Alignment Tool) & VLPAT II™ sets up in minutes taking the guess work out of belt, chain, gear, & roll alignment. Available in red beam or green beam configuration for daylight use… the VLPAT™ family of products delivers!
