RITEC alignment kit is a powerful tool to adjust shafts alignment using dial indicators accurately and easily.
Its flexible components are intended to cater for different shaft dimensions and coupling configurations.
The kit can be used to execute alignment operations for all direct-coupled machine types including:
- Robust design with accurate CNC machined parts.
- Compact & light weight components.
- Easy to assemble and use.

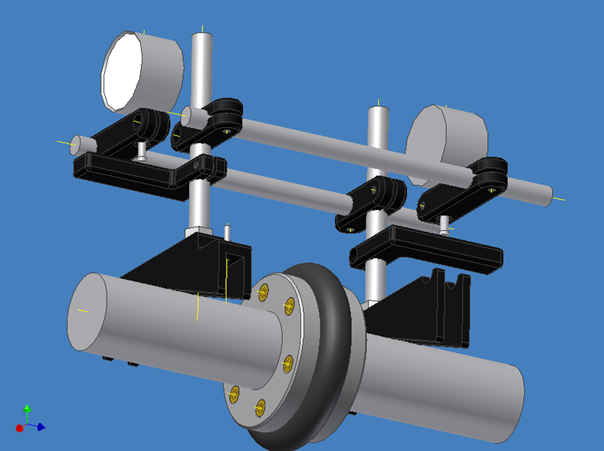

- Brackets attached to the shafts using chains for more flexibility.

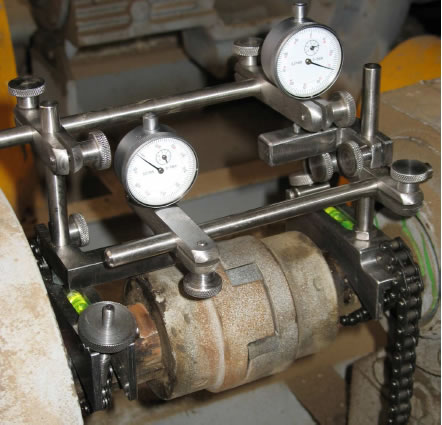

- The kit can be used for both Face & Rim and Reverse Indicator techniques.
- The kit could be used to measure on target faces other than the shaft or the coupling.
- Both techniques can be executed while the coupling is assembled.
- 3 standard kit sizes: < 5 inch shaft diameter, 1-10 inch shaft diameter, >10 inch shaft diameter.

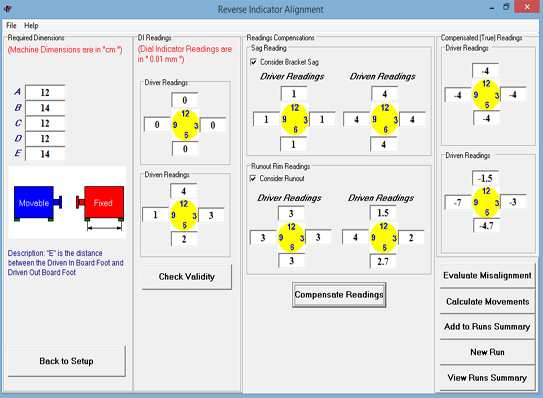

- Robust & easy to use alignment software for both Reverse and Face & Rim Methods.
Request More Info »
- 3 standard rising rod sizes (10, 20 and 30 cm)[or any custom sizes - optional].
- 3 standard crossing rod sizes (10, 20 and 40 cm) [or any custom sizes - optional].
- Rigid cross connectors with tight tolerances.
- Standard accessories for alignment(Measuring tape, mirror, spanner,… etc.).

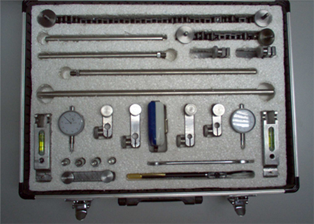

- The kit is arranged in hand held hard case.
- The kit is supplied with standard RITEC alignment software module.
- Advanced alignment module with hot alignment and train alignment capabilities [Optional].
- User-friendly graphical interface.
- Calculation for both face & rim and reverse indicator alignment methods.
- Illustrates machine dimensions graphically.

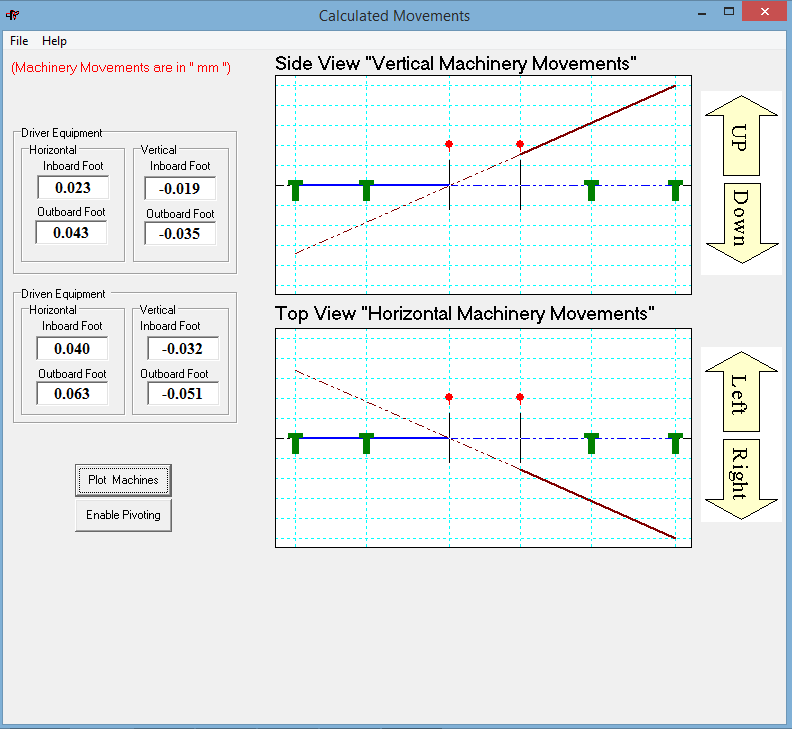

- Calculates movements for both machines.
- Check for readings validity.
- Compares misalignment to standards
- Calculates both horizontal and vertical movements.
- Both machine shafts’ centerlines are graphically illustrated.
- Performs pivoting calculations for reverse indicator method.
- Compensate for shafts and couplings run-out and bracket sags.
- Reporting & printing capabilities.
- Work order saving capability.
