RIMAP© is a Rotordynamic Analysis Software that has been developed with state-of-the-art rotordynamic analysis techniques, including the capabilities to predict:
Through its easy to use GUI (Graphical User Interface), the user can easily design, analyze and troubleshoot rotating machinery such as: turbines, compressors, pumps, fans, electric motors, etc.
Request More Info »
RITEC Integrated Machinery Analysis Package (RIMAP©) provides:
- The most advanced rotordynamics software around
- State-of-the-art analysis techniques
- Unique features
- User friendly graphics interface
- Special advanced capabilities
- Complete data representation and reporting
Request More Info »
RIMAP© utilizes the most reliable analysis methods known such as:
- TMM, Transfer Matrix Method
- FEM, Finite Element Method
- FEMGR, Finite Element Method with Guyan Reduction Technique
Program Features:
- Rotor grows during model build-up
- Speed dependent characteristics
- Gyroscopic Effects

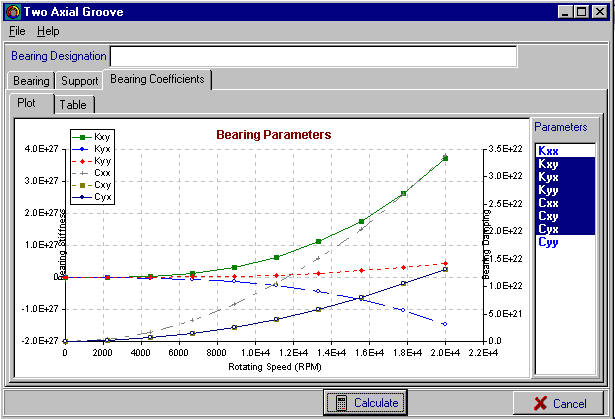

- Hydrodynamic Bearing Analysis including: Plain Journal, Two Axial Groove, Elliptic, Offset Cylinder, 3 Lobe, Pressure Dam, Partial Arc, and Tilting Pad Bearings. Also User can define bearing parameters.
- Flexible Support
- Object Oriented Programming
- Flexible Units
Analysis Options include:
- Eigenvalue analysis, Stability Maps, Campbell Diagram, and Critical Speeds for synchronous excitation or excitation: 0.5X, 1X, 2X, 3X, 4X, or user defined

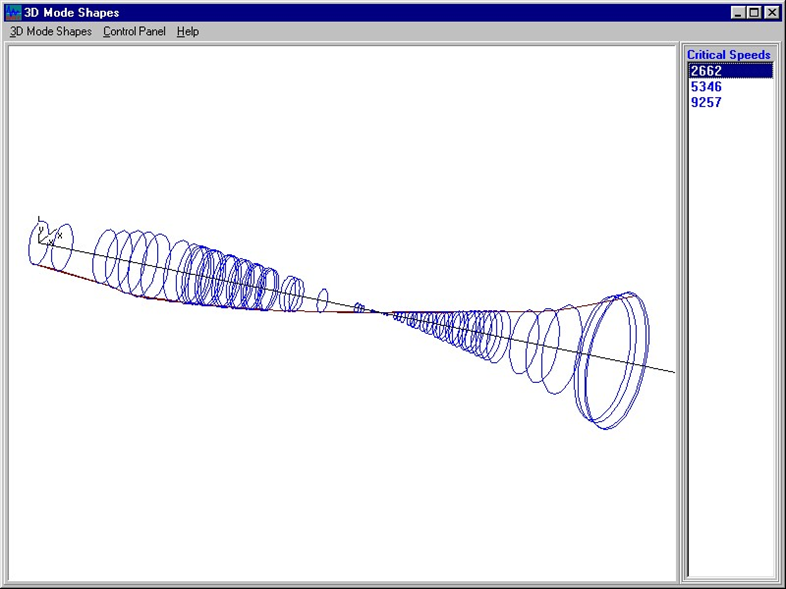

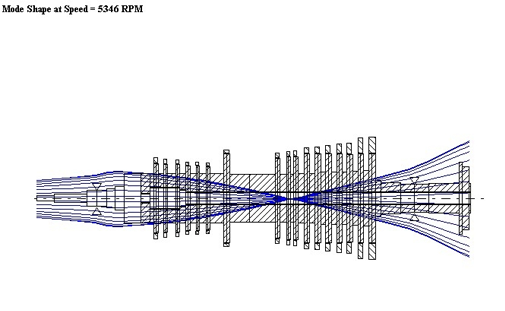

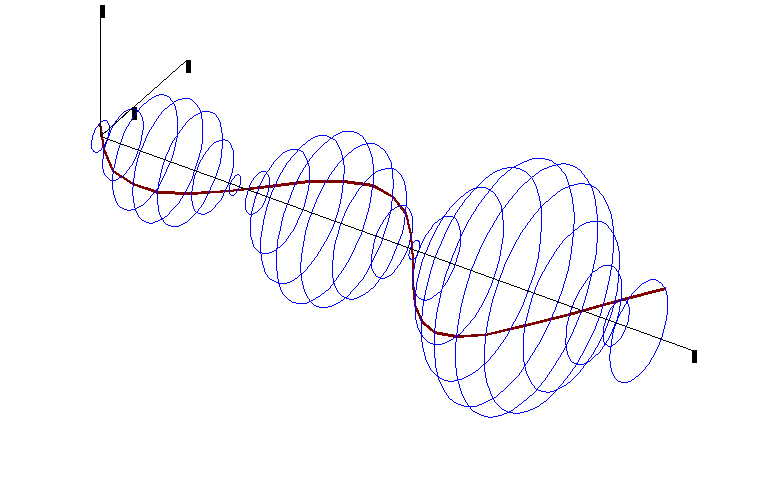

- 2D and 3D Mode Shapes with animation
- Undamped Critical Speed Map, the change in critical speeds with bearing stiffness.
- Unbalance Response can be viewed either as Bode Plot or Polar Plot
