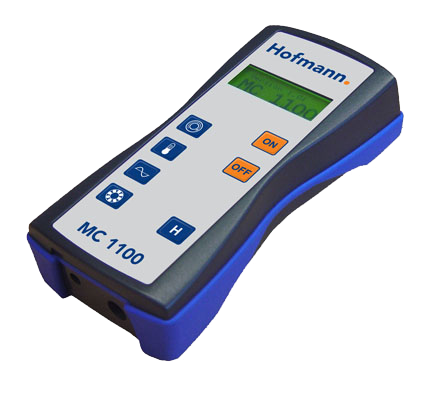

Machine Control MC 1100 is the basic vibration meter for measuring the effective vibration velocity veff (rms) according to DIN ISO 10816-3 or the vibration acceleration and the rolling bearing condition gSP according to the shock pulse method.
Using the integrated speed sensor allows you to determine a rotating machine's speed.
As an option the instrument may be used as a temperature meter or for the adjustment of the belt tension in belt drives.
Features:
- Capturing all important measuring values with one instrument
- Integrated Speed Sensor
- Reliable Easy Operation
- Immediately ready for measuring, no complicated settings required
Download Brochure (PDF)»
Download Brochure (PDF)»
Applications:
- Checking machine vibrations
- Evaluation of the condition of rolling bearings
- Checking rotational speed
- Measuring temperature (Option)
- Adjustment and check of belt tension (Option)
- Identification of critical operation areas
- Early detection of failures
Technical Data
| Measurement Range | |
| Overall Vibration | 0 - 999.9 (mm/s)eff or (m/s²)eff |
| Rolling Bearing Vibration | 0 - 999.9 gSP |
| Speed | 30 - 200,000 1/min (0.5 - 3,333 Hz) | Temperature | 0 - 200 °C / 32 - 392 °F |
| Transducers | Acceleration sensor HMA 1140,100 mV/g Integrated laser speed sensor |
| Dimensions | 80 mm x 160 mm x 40 mm |
| Weight | 350 grams |
| Battery Operation Time | min. 6 Hours |

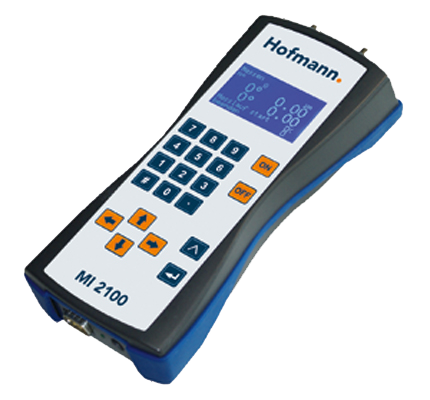

The MinIbalancer MI 2100 by Hofmann is the state-of-the-art field balancing instrument for balancing rotating machinery in one or two planes under operating conditions.
Features:
- Designed for field balancing in one or two planes
- Best balancing results thanks to simple, clearly structured operations
- Additional measurement of overall vibrations in order to detect unbalance problems
- Measurement of the condition value of rolling bearings (option)
- Balancing protocol directly to external printer (option)
- Handy instrument body with fold-out stand
Download Brochure (PDF)»
Download Brochure (PDF)»
Applications:
- Field balancing on site
- Balancing in production and assembly under field conditions
- Measuring vibrations on bearings and machine housings
- Determine overall or unbalance vibrations
- Monitoring rolling bearing condition
- Measuring rotational speed
- Early detection of failures
Technical Data
| Measurement Range | |
| Overall Vibration | 0 - 999.9 (mm/s)eff or (m/s²)eff |
| Rolling Bearing Vibration | 0 - 999.9 gSP |
| Speed | 30 - 200,000 1/min (0.5 - 3,333 Hz) | Temperature | 0 - 200 °C / 32 - 392 °F |
| Transducers | Acceleration sensor HMA 1140,100 mV/g Integrated laser speed sensor |
| Dimensions | 80 mm x 160 mm x 40 mm |
| Weight | 350 grams |
| Battery Operation Time | min. 6 Hours |
